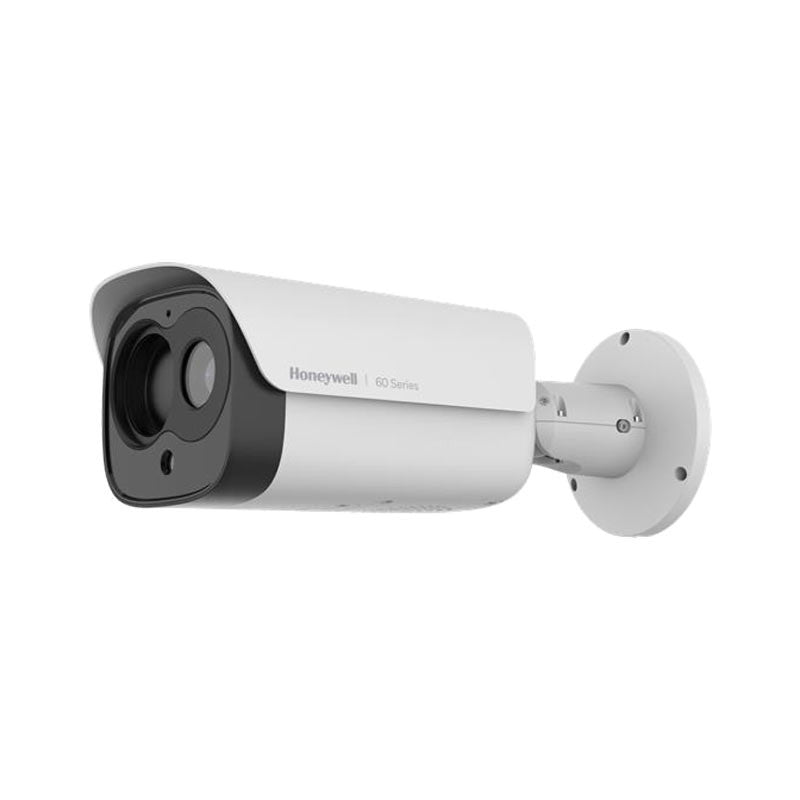

Honeywell 60 Series bi-spectrum fixed bullet camera with thermal imaging, 5MP optical resolution, dual IR and white LEDS, and smoke & fire detection analytics

• 5MP optical and VGA thermal imaging for clear video and accurate heat signature detection
• Multiple optical and thermal lens options to match installation and coverage needs
• Fire and smoke detection analytics for early hazard warnings
• Dual IR and white LEDs for improved low‑light visibility and active deterrence
• Built‑in microphone and speaker supporting clear two‑way communication

The Honeywell 60 Series bi-spectrum fixed bullet camera combines a 5MP optical sensor with a VGA thermal sensor for reliable heat and event detection in all lighting and weather conditions. Available with 4mm or 6mm optical lenses and matching 9mm or 15mm thermal lenses, it provides medium-range perimeter coverage. Built to IP66/IP67 and IK10 standards, it performs continuously in harsh conditions. Fire and smoke analytics offer early alerts of potential dangers as well as spot temperature reading. Dual IR and white LEDs enable illuminate up to 80m in complete darkness. WDR delivers clear images in contrasting lighting. Four I/O ports allow connection to alarm systems and external devices, while the built-in microphone and speaker support two-way audio communication.

We recommended mounting this camera to walls and ceilings with the Honeywell HA35JCBHBB Bullet Junction Box for effective cable management and secure installation.

Video Analytics

Equipped with advanced thermal and optical analytics, the Honeywell 60 Series bi-spectrum cameras enable intelligent detection of people, vehicles, flames, and heat anomalies. Thermal-specific analytics support early fire detection, smoker identification, and equipment monitoring, while optical-side analytics include face detection, loitering, object removal, and directional triggers like wrong-way detection. The use of bounding boxes, temperature alarms, and bi-spectral filtering helps reduce false alerts, improve situational awareness, and support both security and safety-driven use cases in enterprise and industrial settings.

Recording and Video Management

Available recording and video management options for this camera:

• Record directly to on-board microSD Card (not included)
• Honeywell Smart Viewer VMS
• Honeywell NVRs
• Milestone XProtect video management software
• Milestone Arcules VSaaS

Example Use Cases

• Perimeter and zone protection - Early detection of humans or vehicles, configure alarms upon unexpected behaviour, line crossing, loitering detection, unattended and missing object alerts, people counting for crowd control
• Challenging conditions - operates in challenging lighting and weather conditions such as smoke, heavy rain, snow, fog
• Thermal monitoring - electric vehicle charging station monitoring, solar panel plants, data centres and server rooms, combustible material and recycling plant surveillance, machinery overheating detection, flame detection in substations and utility plants

Model Variants
