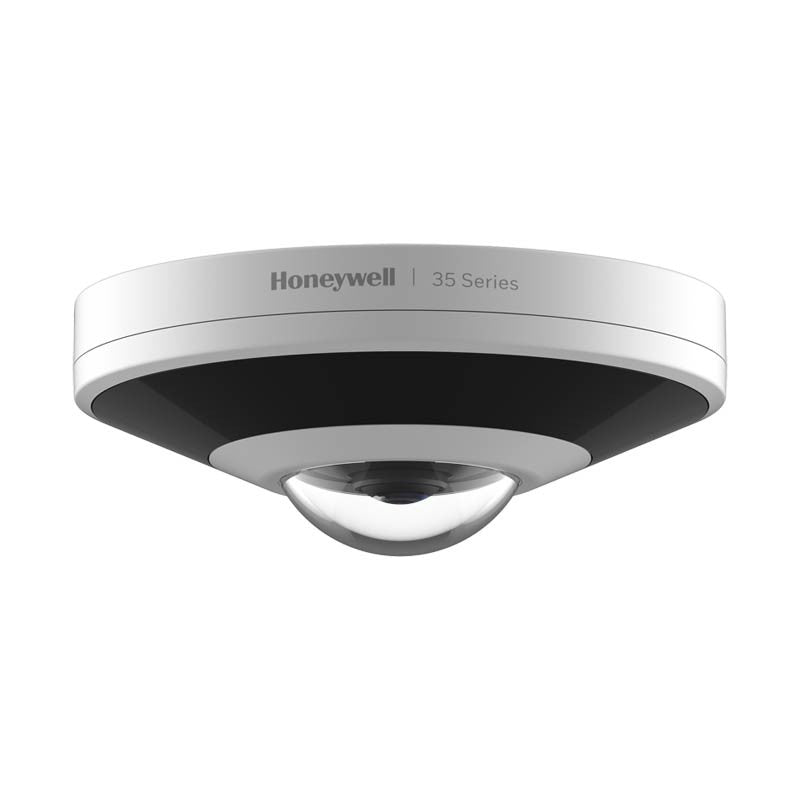

Honeywell HC35WF6R1 in/outdoor hemispheric camera with 6MP resolution, 360° overviews, IR and AI video analytics

• Delivers clear 6MP resolution 180° panoramic or 360° hemispheric overviews
• Eliminate blindspots with dewarping and digital PTZ support for detailed scene investigation
• Integrated 360° Smart IR illumination up to 20m range in complete darkness
• AI-driven video analytics for accurate detection of persons and vehicles
• IP66/67 and IK10 rated for protection against harsh weather and vandalism

This compact, lightweight and affordable fisheye camera captures full 360° coverage of both indoor and outdoor areas in clear 6MP resolution. It features digital PTZ and dewarping for detailed inspection of up to 4 chosen areas, along with single and double panoramic views. Integrated Smart IR LEDs provide 360° night vision in complete darkness up to 20m range, whilst WDR balances overly bright and shadowed scenes. The built-in microphone allows audio capture within the scene for an additional layer of surveillance.

We recommended mounting this camera with the Honeywell HA35JCBHA1 35 Series All-In-One Junction Box for effective cable management and neat installation.

Video Analytics

AI-powered Smart Video Analytics improve monitoring by offering features such as motion detection, intrusion alerts, people counting, line crossing detection, and tampering notifications. Events can trigger alerts via email or VMS, and connect with local alarms through two I/O ports. Smart Motion Detection helps reduce false alarms by distinguishing between people and vehicles. Privacy masking is also available.

Please note: Video analytics are only supported under single channel fisheye mode.

Recording and Video Management

Available recording and video management options for this camera:

• Record directly to on-board microSD Card (not included)
• Honeywell Smart Viewer VMS
• Honeywell NVRs
• Milestone XProtect video management software
• Milestone Arcules VSaaS

Example Use Cases

• Retail stores - Manage customer flow, count visitors, loitering detection to identify hot-spot areas, claim handling, track and trace, deter aggression, minimise theft, reduce shrinkage, monitor threats such as break ins, staff training, identify busiest periods to optimise staffing
• Corporate / offices - Overviews of large rooms, detect individuals, procedure compliance
• Warehouses & Logistics - Procedure compliance, track and trace, claim handling, maintain employee safety, detect cries for help in the event of accidents
• Schools & Education - oversee campuses, lecture halls and large corridors

Accessories Included

• HC35WF6R1 camera
• Mounting screws
• Drill template
• Installation guide
• T15 torx screwdriver
• RJ45 connector
• Power fly lead
